AHS-DRY Series

Raypa

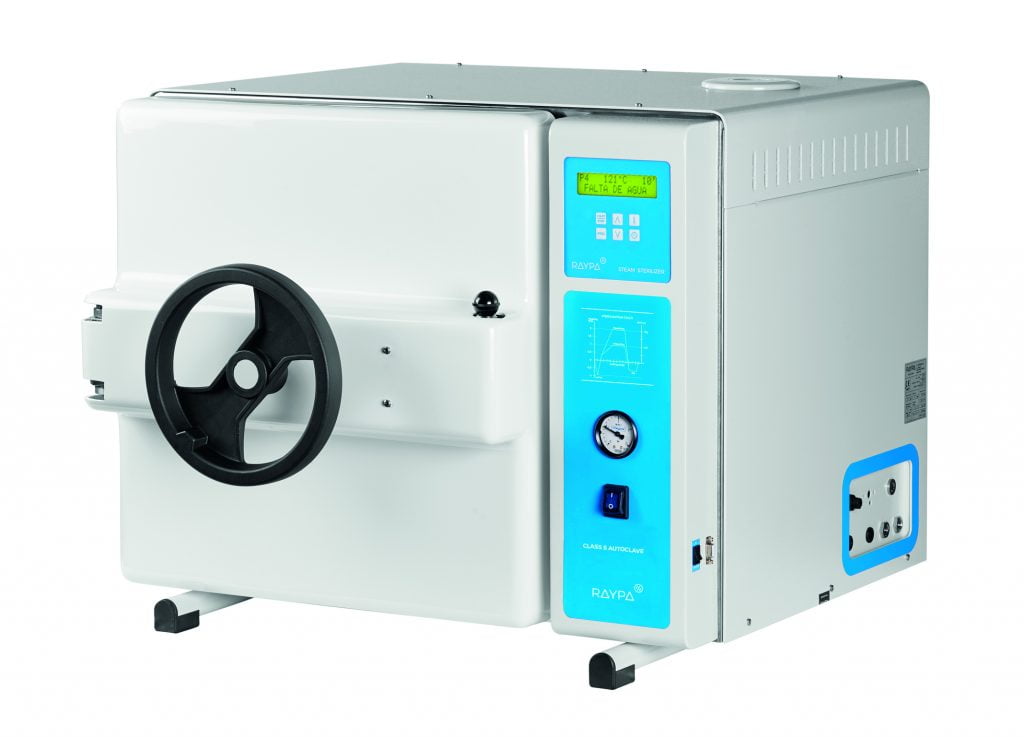

AHS-DRY Series

Horizontal benchtop laboratory autoclaves with drying.

From 22 to 79 Litres.

Contact
Plan a meeting

Information

The AHS DRY horizontal benchtop automatic autoclaves deliver great performance for general labware sterilization in many industries, educational and medical facilities and research institutes with the aim of increasing the productivity of the laboratory

The AHS DRY Series are intended for the sterilization of a wide range of solid materials such as unwrapped and wrapped items, small porous objects and hollow ware type B (slightly deep and broad cavities), glass, plastic, metallic objects and waste bags. The drying feature and the automatic water control level reduce operator time dedicated to the autoclave leading to facilitate the sterilization procedures in the general laboratory.

Features

  • Sterilization chamber made of AISI-316L stainless steel.
  • Equipment controlled by digital PID microprocessor, with 4 predefined and 6 editable programs, adjustable by time, temperature, drying time and type of cycle (solids or liquids).
  • Cycles with initial simple prevacuum and final drying by vacuum pump and heating jacket.
  • Alphanumeric LCD screen that shows sterilization parameters, alerts and errors.
  • RS-232 port to connect PC or printer.
  • Includes a water tank that automatically feeds the sterilization chamber.
  • Optional automatic feed of the water tank.
  • Cycle time range: 1-250 min.
  • Bacteriological filter for air inlet.



Advantages

  • Automatic drying.
  • Agar mode (40 to 80 ºC) and programs for liquids.
  • Optional heart probe.
  • Connection to PC.
  • Optional control software.
  • Programmable auto-start: 24 h
  • Optional integrated or external printers.



Components supplied

AH-21-L

  • Support for 4* trays.
  • 3 stainless steel perforated trays.
  • Auxiliary tray.
  • Holding clamp.
  • 1.5 m flexible tube to drain.
  • Bag support.

*Special tray support compatible with up to 5 trays available under request.

AHS-50-DRY & AHS-75-DRY

  • Support for 5 trays.
  • 2 stainless steel perforated trays (BAH-B).
  • Auxiliary tray.
  • 1.5 m flexible tube to drain.



models AH-21-L AHS-50-DRY AHS-75-DRY
Chamber volume total / usable 22/21 L 55/50 L 79/75 L
Usable chamber dimensions Ø x D 210 x 430 mm 360 x 400 mm 360 x 600 mm
Independent water tank volume 6 L 10 L 10 L
Exterior dimensions L x D x H 560 x 660 x 425 mm 805 x 805 x 650 mm 805 x 1005 x 650 mm
Maximum number of trays 4* 5 5
Trays dimensions L x D mm 190 x 350 mm 315 x 330 mm 315 x 530 mm
Power 2000 W 2800 W 3200 W
Gross weight 55 Kg 125 Kg 140 Kg
Voltage** 230V 16A 230V 16A 230V 16A
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Adjustable sterilization temperature 100 – 134 ºC 100 – 134 ºC 100 – 134 ºC
Adjustable sterilization time 1 – 250 min 1 – 250 min 1 – 250 min
Adjustable drying time 3 – 99 min 3 – 99 min 3 – 99 min
Max. pressure 2‚1 barg 2‚1 barg 2‚1 barg
Technical data sheet
