AHS-N Series

Raypa

AHS-N Series

Horizontal benchtop laboratory autoclaves without drying.

From 22 to 79 Litres.



Information

The AHS-N benchtop horizontal autoclaves cover the fundamental needs for general labware sterilization in many industries, educational and medical facilities and research institutes with the aim of increasing the productivity of the laboratory.

The AHS-N Series are intended for the sterilization of a wide range of liquid and solid materials such as culture media, glassware, plastics, metallic equipment, waste bags, and other laboratory items. These reliable workhorses for the general laboratory are designed for an easy operation and include many safety features to protect the users in their daily routine.

Features

  • Sterilization chamber made of AISI-316L stainless steel.
  • Equipment controlled by digital PID microprocessor with 4 predefined and 6 editable programs, adjustable by time and temperature.
  • Alphanumeric LCD screen that shows sterilization parameters, alerts and errors.
  • RS-232 port to connect PC or printer.
  • Includes a manually-filled water tank that automatically feeds the sterilization chamber.
  • Manual steam release push-button.
  • Manual drain valve.
  • Cycle time range: 1-250 min.

Advantages

  • Agar mode (40 to 80 ºC) and programs for liquids.
  • Optional heart probe.
  • Connection to PC.
  • Optional control software.
  • Programmable auto-start: 24 h.
  • Optional integrated or external printers.

Components supplied in the 55 to 79 L (AHS-50-N & AHS-75-N)

  • Support for 5 trays.
  • 2 stainless steel perforated trays.
  • Auxiliary tray.
  • 1.5 m flexible tube for drainage.

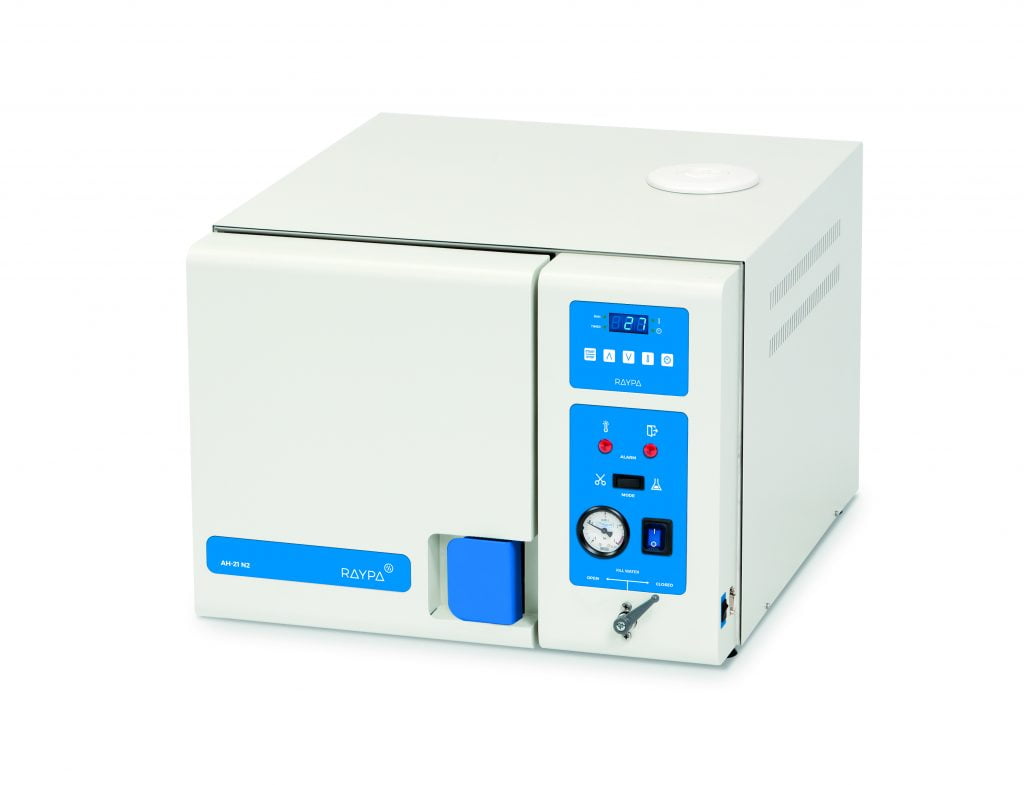

Components supplied in the 22L (Model AH-21-N2)

  • Support for 4* trays.
  • 3 stainless steel perforated trays.
  • Auxiliary tray.
  • A holding clamp.
  • 1.5 m flexible tube for drainage.

*Special tray support compatible with up to 5 trays available under request.

models AH-21-N2 AHS-50-N AHS-75-N
Chamber volume total / usable 22/21 L 55/50 L 79/75 L
Usable chamber dimensions Ø x D 210 x 430 mm 360 x 400 mm 360 x 600 mm
Independent water tank volume 6 L 10L 10 L
Exterior dimensions L x D x H 560 x 660 x 425 mm 805 x 805 x 650 mm 805 x 1005 x 650 mm
Maximum number of trays 4* 5 5
Trays dimensionsL x D mm 190 x 350 mm 315 x 330 mm 315 x 530 mm
Power 2000 W 2800 W 3200 W
Gross weight 55 Kg 95 Kg 110 Kg
Voltage** 230V 16A 230V 16A 230V 16A
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Adjustable sterilization temperature 100 – 134 ºC 100 – 134 ºC 100 – 134 ºC
Adjustable sterilization time 1 – ∞ min 1 – 250 min 1 – 250 min
Max. pressure 2‚1 bar 2‚1 bar 2‚1 bar
