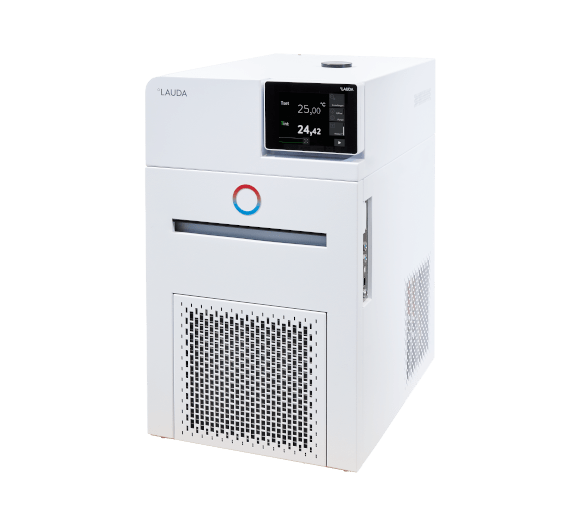

PRO Compact Circulation Thermostat

LAUDA

PRO Compact Circulation Thermostat

Compact circulation thermostats for professional temperature control thermostating from -90°C up to 250°C

Information

LAUDA PRO is the cutting-edge product line with an outstanding overall concept:

Brand new from LAUDA are the circulation thermostats for external use, with small, active liquid volumes for quick temperature changes. The innovative Base or Command Touch operating units can be detached and used as a remote control.

The low temperature thermostats come equipped with hybrid cooling as standard, which allows for additional cooling of the refrigerating machine with water.

  PRO P 2 EC PRO RP 290 EC PRO RP 250 EC PRO RP 245 EC PRO RP 240 EC PRO RP 290 E PRO RP 250 E PRO RP 245 E PRO RP 240 E PRO P 2 E
Working temperature min. 80 °C -90 °C -50 °C -45 °C -40 °C -90 °C -50 °C -45 °C -40 °C 80 °C
Working temperature max. 250 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 200 °C 250 °C
Temperature stability 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K 0.05 ± K
Cooling output at 20 °C   0.8 kW 1.5 kW 0.8 kW 0.6 kW 0.8 kW 1.5 kW 0.8 kW 0.6 kW
Heater power max. 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW 2.5 kW
Interfaces integrated Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B) Ethernet, USB (Type B)
