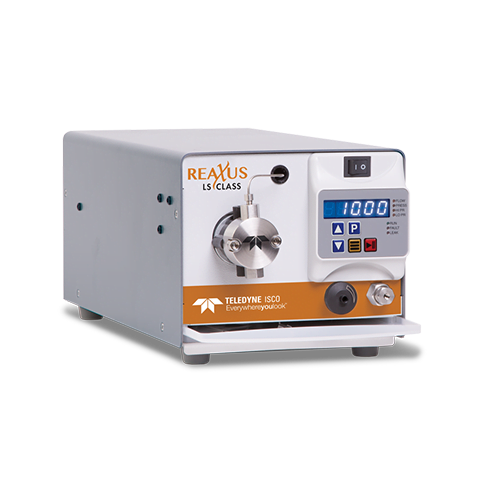

The reliable ReaXus LS Class consists of single-headed, positive displacement piston pumps incorporating advanced cam designs for very low pulsation. The pumps are ideal for a wide variety of HPLC applications (including Biocompatible separations), Semi-Prep LC, metering & dispensing, and general laboratory use. Standard fluid path materials are Stainless Steel. Other available features include jacketed heads for temperature controlled processes. With 10 mL/min, 40 mL/min, and 100 mL/min versions available, and pressure capability up to 6,000 psi, these versatile pumps will meet the most demanding applications.
|Flow Rate Range and Max. Pressure Ratings*||0.0-10.000 mL/min (6,000 psi)
0.0-40.000 mL/min (1,600 psi)
0.0-100.0 mL/min (600 psi)
|Pulsation**||≤2.0% @ 1 mL/min and 1,000 psi (10 mL, 40 mL)
≤4.0% @ 50 mL/min and 500 psi (100 mL)
|Pressure Accuracy||±2.0% of full scale pressure|
|Flow Precision||0.2% RSD|
|Flow Accuracy||Within 2.0% of set flow rate, 0.20 mL/min and above; 80:20 Water/IPA @ 1,000 psi (10 mL)
Within 2.0% of set flow rate, 0.80 mL/min and above; 80:20 Water/IPA @ 1,000 psi (40 mL)
Within 2.0% of set flow rate, 2.0 mL/min and above; 80:20 Water/IPA @ 500 psi (100 mL)
|Wetted Materials||(See Options on Datasheet), Synthetic Ruby, Sapphire, UHMWPE, PTFE|
|Dimensions||6.5″ H x 7″ W x 16″ D
(16.5 x 17.8 x 40.6 cm)
|Weight||15.3 lbs. (6.9 kg)|
|Power||100-240 Vac (±10%), 50-60 Hz|
|Control||RS-232, Micro USB, Run/Stop, Analog (0-10V, 4-20mA)|
|*Flow Rate is dependent on solvent selection and operating pressure.
**Pulsation value with pulse dampener.
